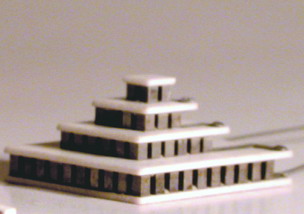

Multi-stage thermoelectric modules
| Type | Imax, Amps |
Hot side Th = 27oC | Dimensions, mm | ||||||
| Qmax, Watts |
Vmax, Volts |
ΔTmax,K (min) |
A | B | C | D | H | ||
| 2MT1.2-1.3-127-63 | 2.8 | 16.5 | 14.0 | 86 | 30 | 30 | 30 | 30 | 6.2 |
| 2MT2-1.6-127-63 | 5.5 | 25.0 | 15.8 | 85 | 40 | 40 | 40 | 40 | 7.3 |
| 2MT2-1.2-127-63 | 6.0 | 30.0 | 15.8 | 85 | 40 | 40 | 40 | 40 | 7.0 |
| 2MT2.6-1.4-44-12 | 8.0 | 10.0 | 5.27 | 85 | 25 | 22.5 | 18 | 13 | 8.0 |
| 2MT4.7-1.6-127-70 | 9,5 | 59,0 | 14.4 | 83 | 62 | 62 | 62 | 62 | 8.4 |
Custom designed modules are available
Other types of multi-stage Peltier modules see in Micromodules
Also see TEM options (about thermoelectric parameters, materials, dimensions, etc. )
