Designation of thermoelectric modules

System of Designation of TEM. How to read the name of the Peltier module.

  For thermoelectric modules, producing by SPF Modul, the following system of designation is used:

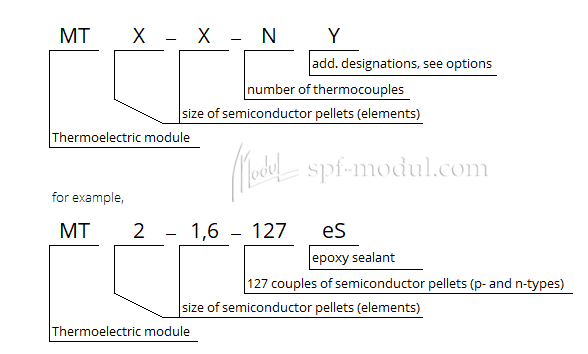

Single stage simple thermoelectric module:

name and designation of Thermoelectric module Peltier

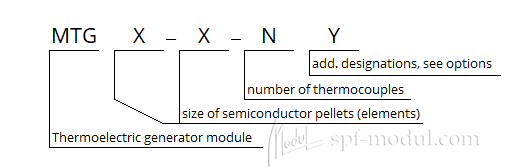

Thermoelectric generator module:

name of Thermoelectric generator module

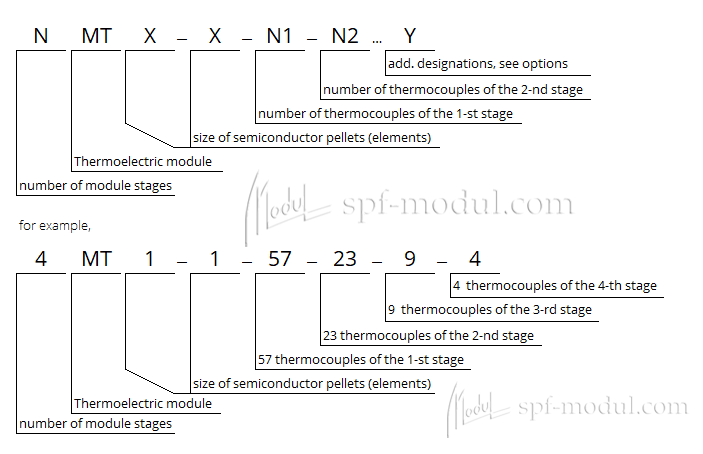

Multi-stage thermoelectric modules:

name and designation of multi-stage Thermoelectric module Peltier

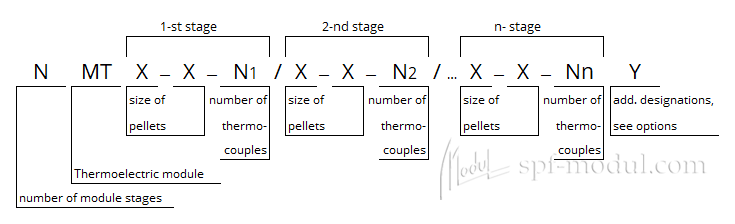

name and designation of multi-stage Thermoelectric module Peltier

Also see TEM TEM options (about thermoelectric parameters, materials, dimensions, etc.)
See. Construction of thermoelectric module Peltier
