Micromodules

thermoelectric module Peltierthermoelectric Peltier module

Thermoelectric Micromodules (Peltier elements)

Type Imax,
Amps
Hot face Th = 27oC Dimensions, mm
Qmax,
Watts
Vmax,
Volts
ΔTmax,K
(minimum)

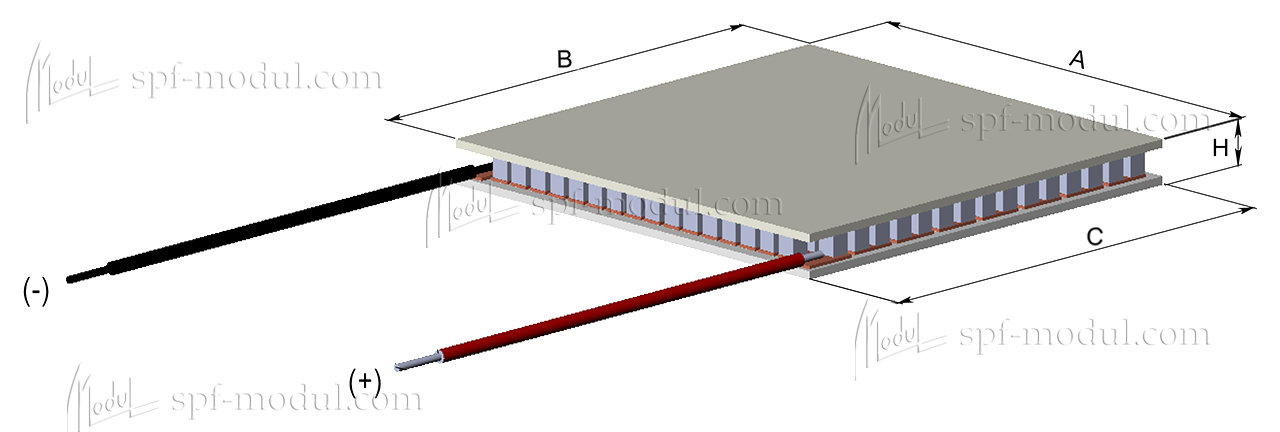

A B C D H
MT0.08-1.3-31D 0.35 0.75 3.60 67 4.0 4.0 5.3 - 3.0
MT0.14-1.6-31D 0.60 1.10 3.60 67 5.4 5.4 7.0 - 3.0
MT0.18-1.5-7 0.60 0.30 0.80 73 3.2 3.2 - - 2.6
MT0.25-1.6-29D 0.85 1.60 3.40 67 4.8 4.8 10 - 2.4
MT0.25-1.2-49 0.90 2.90 5.70 65 10 10 - - 3.1

MT0.27-1.3-31 1.00 2.20 3.60 70 8.8 8.8 - - 2.4
MT0.34-1.5-39 1.00 2.75 4.50 72 13.2 13.2 - - 2.4

MT0.35-1.6-4 1.20 0.30 0.45 67 4.0 2.0 - - 2.6
MT0.35-1.6-18D 1.20 1.40 2.10 67 6.0 6.0 8.0 - 2.6
MT0.35-1.6-49D 1.20 3.90 5.70 67 10.0 10.0 12.0 - 2.6
MT0.35-1.6-66D 1.20 5.30 7.90 67 12.0 12.0 14.0 - 2.6
MT0.36-1.5-65 1.20 5.44 7.50 71 11.4 11.1 - - 2.6
MT0.34-1.6-17 1.30 1.30 1.90 67 6.2 6.2 - - 3.0
MT0.34-1.6-48 1.30 3.90 5.40 67 10.0 16.8 - - 3.0
MT0.28-0.96-19D 1.40 1.85 2.30 67 6.7 13.4 15.8 - 2.2

MT0.35-1.3-7 1.60 0.70 0.80 67 4.2 4.2 - - 2.0
MT0.35-1.3-18D 1.60 1.70 2.10 67 6.2 6.2 8.3 - 2.0
MT0.61-2.5-31 1.60 3.00 3.60 70 11.2 11.2 - - 2.0
MT0.35-1.3-49D 1.60 4.70 5.70 67 8.8 8.8 9.2 - 2.0
MT0.35-1.3-89 1.60 8.70 10.0 67 12.0 25.0 - - 2.0

MT0.40-1.3-17 1.80 1.90 1.90 67 2.0 6.2 - - 2.0
MT0.40-1.3-18D 1.80 2.00 2.10 67 6.0 6.2 8.3 - 2.0
MT0.41-1.1-17 1.80 2.20 1.90 67 6.6 6.6 - - 2.2
MT0.38-1.03-71 1.80 9.00 8.10 70 13.2 13.2 - - 3.0
MT0.38-1.0-7D 1.80 0.90 0.80 69 3.35 3.35 4.37 - 2.2
MT0.45-1.15-71 1.90 9.20 8.10 69 13.2 13.2 - - 2.2
MT0.45-1.15-71M 1.90 9.20 8.10 69 13.2 13.2 - - 2.2
MT0.32-0.8-32 1.90 3.80 3.80 68 6.0 10.5 - - 1.65

MT0.45-1.15-7 2.00 0.95 0.80 69 4.1 4.1 - - 3.0
MT0.45-1.03-17 2.00 2.50 1.90 69 6.6 6.6 - - 2.15
MT0.40-1.3-23 2.00 2.60 2.60 67 6.2 8.3 - - 2.0
MT0.45-1.08-31 2.00 4.20 3.60 69 8.1 8.1 - - 2.2
MT0.42-1.0-30D 2.00 4.20 3.40 69 6.2 10.3 12.0 - 1.9
MT0.45-1.3-32D 2.00 4.30 3.80 67 8.3 8.3 10.3 - 2.2
MT0.42-0.8-72
(with center hole)
2.00 8.40 8.70 64 11.0 11.0 - - 2.0

MT0.41-0.8-9 2.10 1.20 0.90 67 4.2 4.2 - - 2.0
MT0.62-1.5-31 2.10 4.45 3.60 70 12.0 12.0 - - 3.4
MT0.64-1.5-49 2.15 7.20 5.70 72 15.0 15.0 - - 3.4

MT0.49-1.08-134 2.20 21.00 15.70 71 18.0 15.0 - - 2.2
MT0.66-1.1-49D 2.90 9.90 5.70 68 9.5 19.0 21.0 - 2.2

thermoelectric multi-stages module Peltierthermoelectric multi-stages module Peltier

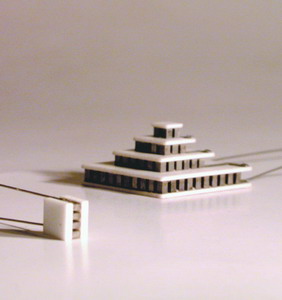

Multi-stage microcoolers

Type Imax,
Amps
Hot face Th = 27oC Dimensions, mm
Qmax,
Watts
Vmax,
Volts
ΔTmax,K
(min)

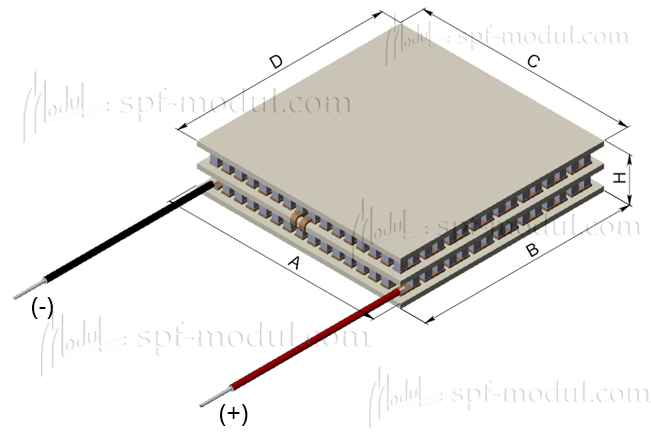

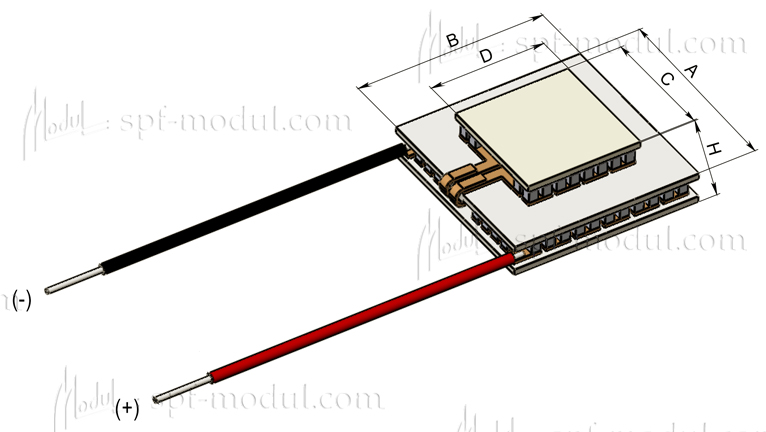

A B C D H
2-STAGE MODULES
2MT0.38-1.03-48-23 1.20 2.60 5.40 89 9.9 11.0 6.6 8.8 3.8
2MT0.44-1.1-7-4 1.30 0.40 0.90 90 4.2 4.2 3.0 3.0 4.0
2MT0.44-1.1-17-8 1.30 0.95 2.09 92 6.8 6.8 4.0 4.0 4.0

2MT0.42-1.1-7-3 1.40 0.37 0.80 90 3.9 3.9 3.0 3.0 3.8
2MT0.38-1.3-7-2 1.40 0.40 0.91 90 4.2 4.2 3.0 3.0 4.0
2MT0.44-1.0-7-3 1.40 0.40 0.77 92 4.0 4.0 3.2 3.2 3.8
2MT0.49-1.4-17-5 1.40 0.70 2.00 99 6.6 6.6 3.9 3.9 4.8
2MT0.44-1.0-16-7 1.40 1.00 1.70 88 6.1 6.1 4.1 4.1 3.8
2MT0.44-1.0-17-7 1.45 0.95 1.95 90 6.1 6.1 4.1 4.1 4.2

2MT0.66-1.2-65-27 1.90 8.00 8.90 95 15.0 18.0 12.0 12.0 4.1
3-STAGE MODULES
3MT0.32-1.2-71-20-8 0.90 0.96 7.60 115 11.6 11.3 4.6 4.6 6.0
3MT0.49-1.0-30-14-4 1.30 0.67 3.10 109 8.8 8.8 4.4 4.1 5.3
3MT0.49-1.0-16-7-2 1.30 0.37 1.64 110 6.6 6.6 2.5 2.5 5.3
4-STAGE MODULES
4MT0.44-1.3-43-15-5-2 1.10 0.30 4.74 125 10.0 7.3 2.0 2.0 9.8
4MT0.44-1.1-43-15-7-2 1.10 0.34 4.36 124 12.0 7.3 2.0 2.0 9.3
4MT0.44-1.1-43-15-10-2 1.10 0.35 4.51 120 10.0 7.3 2.0 2.0 9.3

4MT0.81-1.0-118-48-19-6 2.20 2.00 12.2 125 18.0 18.0 12.0 12.0 8.3
4MT1.0-1.6-54-20-7-2 2.40 0.70 6.30 120 17.8 14.8 3.0 3.0 8.5
4MT1.0-1.4-57-23-7-2 2.40 0.70 6.30 132 17.8 14.8 3.0 3.0 8.5

4MT1.0-1.6-54-20-7-2 3.10 1.00 6.30 120 17.8 14.8 3.0 3.0 6.5
4MT1.0-1.5-57-23-9-4 3.10 1.10 6.40 126 17.8 14.8 3.0 3.0 8.5
4MT1.0-1.0-57-23-9-4 3.10 1.62 6.50 125 17.8 14.8 3.0 3.0 6.5

Custom designed modules are available
Also see TEM options (about thermoelectric parameters, materials, dimensions, etc. )
