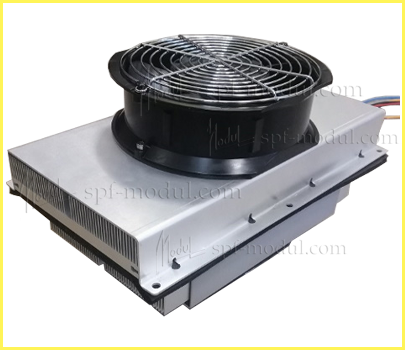

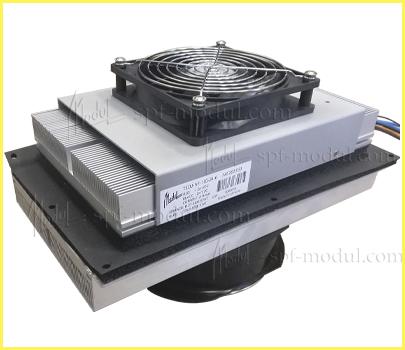

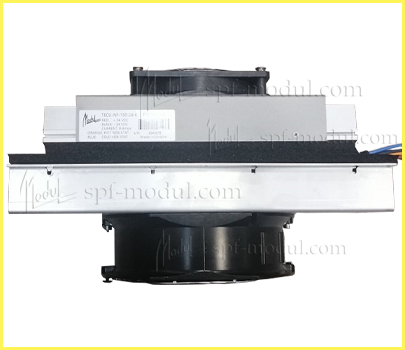

Thermoelectric cooling device
TECU-FF-200-24-6 (200 W)

Part #: FM202.062

Thermoelectric cooling devices (units) are designed to remove heat from distribution cabinets with radio-electronic equipment, control panels, etc. using convective and conductive heat transfer. They are used to prevent overheating and failure of electronic components and assemblies that are sensitive to high temperature, as well as for cooling various household appliances and industrial objects.

Overall Dimensions
Length	300 mm
Width	168 mm
Height	185 mm
Main Parameters
Weight	5,7 kg
Operating Voltage	24 V DC
Cooling Capacity	200 W
Noise	60 dB (A)
IP protection	54
Datasheet (download)
